Parker manually,pneumatically,and electrically actuated two way and three way Ball Valves provide 1/4 turn (or diverting) for on-off control of fluids utilized in process and instrumentation applications. A broad selection of valve body,seat,and seal materials provide a wide variety of pressures and temperatures at which the valve may be used.

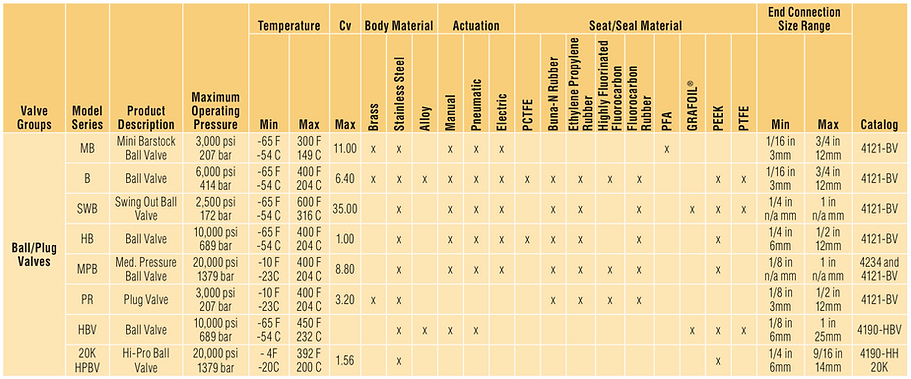

Ball/Plug Valves
> MB Series

• One piece compact barstock design

• Center off position for 3-way

• Standard drop-in replacement



• 2-way, inline, angle; 3-way, 4-way and 5-

   way

> B Series

• 2-way, 3-way diverting or spring loaded 3-

   way selector designs

• Wide temperature application range -65°F

   (18°C) to +450°F (232°C)

• Rated for up to 6,000 psi (413.7 bar)

• Widest variety of seats, seals and port

   connections

• Connections include CPI™, A-LOK® , male

   and female NPT, UltraSeal™ and

   VacuSeal™

> SWB Series

• Zero clearance body allows repairs in field • Spring loaded seats and stem seals

• Fully enclosed body bolts

• ISO-type actuator mounting design

• Available up to 1" full flow design

> HB Series

• Compact FNPT version for tight work areas • Full operating pressure in any port

• Excellent for CNG

• PEEK™ trunnion bearings provide high

   cycle life

• 10,000 psi (689 bar) rating with PEEK™

   seats

> MPB Series Ball Valve

• 2-way and 3-way ball valve for severe

  service applications

• Designed for 1/4 and 1/2 turn media

   shutoff or switching applications

> MPB Series Ball Valve

• Low operating torque

• Optional locking device, downstream vent

   and metal tee handles

• Typically used in laboratories

• Most compact 90° actuated valve

> Pneumatic/Electric Actuators

• 60 Series pneumatic actuators provide 90°

   and 180° rotation in both double acting

   and spring return models

• 70, 80 and 90 Series electric actuators

   provide 90° and 180° actuation for our B,

   MB, HB, SWB series ball valves

> HBV Series

• Suitable for the most demanding

   applications in the oil, gas and process

   control industries

• Integral compression ends available,

   eliminating taper threads and thread

   sealants

• Two piece barstock design reduces body l

   eakage paths

• Complies with ANSI/ASME B16.34

   requirements where applicable

• NACE MR-01-75/ISO 15156 compliant

   materials available

• Fire safe option

> HBV Series

• Suitable for the most demanding

   applications in the oil, gas and process

   control industries

• Integral compression ends available,

   eliminating taper threads and thread

   sealants

• Two piece barstock design reduces body l

   eakage paths

• Complies with ANSI/ASME B16.34

   requirements where applicable

• NACE MR-01-75/ISO 15156 compliant

   materials available

• Fire safe option
