Parker’s comprehensive range of fittings and quick couplings will keep your application running smoothly with products of the highest quality standards.No matter what your application,we have the fittings and couplings to help you avoid costly downtime.

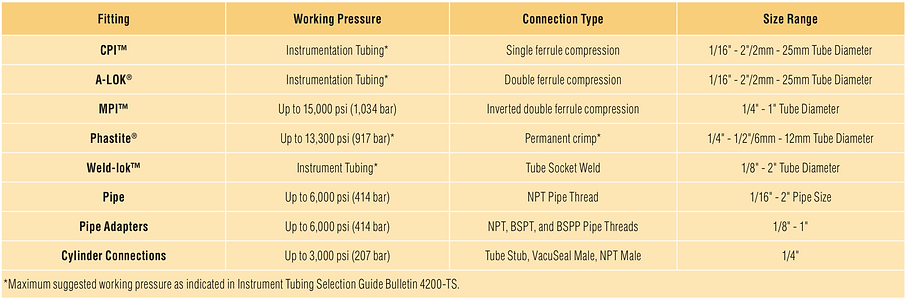

Fittings/Quick Couplings
> CPI™ Fittings
• Three piece simple design to work on all
instrumentation grade tubing
• Molybdenum Disulfide coated nuts to
prevent galling and provide lubrication
• Single ferrule system treated with
Suparcase™ technology to insure sealing
• Superior body seat surface finish to seal
gases and liquids
• Single ferrule technology to provide
excellent anti-vibration performance
• Excellent in high thermo cycling
applications
> A-LOK® Fittings
• Industry standard design for all
instrumentation grade tubing
• Silver coated threads to reduce galling
• Industry double ferrule design for system
specifications
• Back ferrule is treated with Suparcase™
technology to provide a strong mechanical grip on the tube
> MPI™ Fittings
• Compression fitting for medium pressure
applications up to 15,000 psi (1,034 bar)
• Inverted body and nut design for added
strength with thick-wall tubing
• Longer thread area for improved
performance and resistance to vibration
• Molybdenum Disulfide coated nuts to
prevent galling and for higher temperature
applications
• Installation and rework time reduced by
50%
> Phastite®
• Option for welded systems
• Simple assembly process provides high
integrity connections, first time every time
• Installation time reduced to seconds
• No loose parts, supplied factory pre
assembled
• Permanent push fit tube connector with
working pressures up to 13,300 psi(917bar)
> Instrumentation Pipe Fittings
• Manufactured from 316 stainless steel for
superior corrosion resistance
• Available with NPT and ISO thread
configurations
• All exposed threads protected to prevent
damage
• All pipe threads meet ANSI B1.20.1
requirements
> Welded Fittings
• Available in socketweld, buttweld and
automatic buttweld connections
• Manufactured to meet ASME Section III,
and ANSI B31.1 and B31.7 codes
• Permanent, leak free connection
• For critical applications and high
temperatures such as steam
> Cylinder Connections
• High integrity and ultra high integrity
(DISS) connections
• Seal enhancer improves connection
integrity
• Cleaned and packaged for O2 service
• Complete line consists of nipples, nuts,
gaskets, adapters, caps, plugs,
assemblies, seal enhancers, flexible
pigtails, torque wrenches
> Brass Push-to-Connect Fittings
• Prestolok® push-to-connect fittings are
designed for use with nylon, polyethylene,
polyurethane and soft metal tubing
• Ideal for pneumatic applications
• Equipped with stainless steel grab rings
eliminating need for tube supports
• No tools required for installation
• Designed for side-loading
> Quick Couplings
• Non-Spill designs virtually eliminate fluid
loss upon disconnection and drastically
minimize air inclusion during connection
• Common industrial and global
interchanges available
• Various body and seal materials available
for transfer and sealing off media in
corrosive or high purity applications
• Working pressures available up to 10,000
psi (690 bar)
